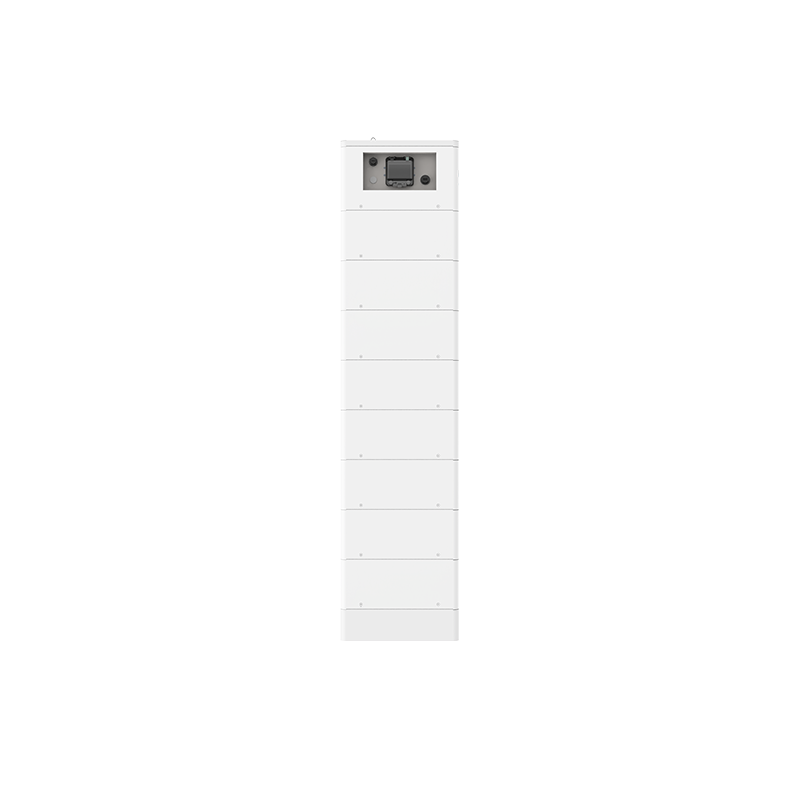

5.12kWh High Voltage Stackable Energy Storage Battery Pack

Gospower GPSB-48100H stackable lithium battery is suitable for both off-grid and Hybrid inverters with high compatible protocol matching. Satckable appearance design makes it more flexible and easy to install.

  • Item No :

    GPSB-48100H
  • Weight :

    196KG~372KG

5.12kWh High Voltage Stackable Energy Storage Battery Pack



Support 2-8 Units Stack

IP65 Design

1.0-1.6m Stack Height

100-400Vdc Output

Energy Storage Battery

LiFePO4 Battery

Lithium Battery

Battery Pack

Suitable for both off-grid and hybrid inverters, and

protocol match well

The fault diagnosis and isolating function for battery

module protects the system

Programmable charge and discharge control

Elegant design, IP Rate: IP65, Plug and Play

Design Life >10 years @25C

Flexible and easy installation

Multi-level software and hardware protection

Cycles: More than 6000 cycle life with 80% DOD

Certificates:CE, TUV, ROHS, UN38.3, lEC62619, MSDS



The Gospower GPSB-48100H Stackable Lithium Battery, a versatile energy storage solution designed for both off-grid and hybrid inverters with high compatibility protocol matching. With its stackable appearance design, installation becomes more flexible and straightforward, ensuring seamless integration into your power system setup.

The Gospower GPSB-48100H offers a robust 5.12kWh high voltage energy storage battery, providing reliable backup power when you need it most. Whether you're looking to enhance your off-grid setup or bolster your hybrid inverter system, the Gospower GPSB-48100H is the ideal choice for efficient and dependable energy storage.

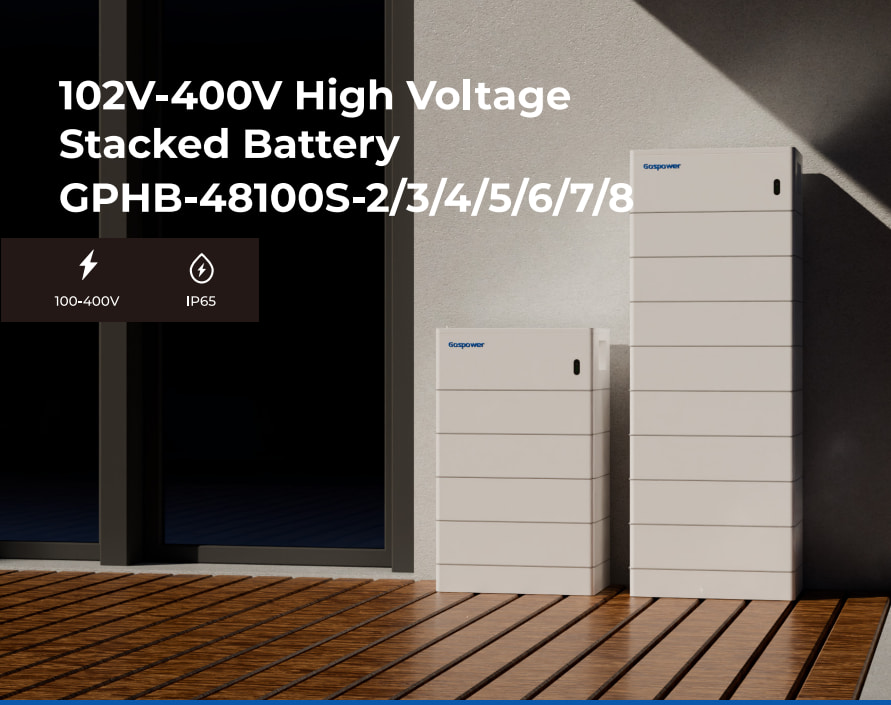

5.12kWh Energy Storage Battery

Single Module
  GPSB-48100H
Battery type LiFePO4
Nominal Energy (kWh) 5.12
Nominal Capacity [Ah] 100
Nominal Voltage [V] 51.2
Voltage Range [V] 43.2~58.4
Operation Temperature -20*C~45*C@DisCharge 0°C~45°C@charge
Designed Life 10+ Years
Cycle Life More than 6000 Cycles @25*C 80%DOD
Dimension(L *W*H) (mm) 600*390*1 58.5
Weight (kg) 44







Parameters GPSB-48100-4S GPSB-48100-5S GPSB-48100-6S GPSB-481 00-7S GPSB-481 00-8S
Battery module quantity
Battery module energy (kWh) 20.48 25.60 30.72 35.84 40.96
Module Number 4 5 6 7 8
Rated Voltage (V) 204.8 256 307.2 358.4 409.6
Voltage Range (V) 172.8-233.6 216-292 259.2-350.4 302.4-408.8 345.6-467.2
Charge Current (A) 20 20 20 20 20
Max. Discharge Current (A) 50 50 50 50 50
Dimension:(W*D*H) 600*390*985 600*390*1138 600*390*1291 600*390*1444 600*390*1597
Weight (kg) 196 240 284 328 372
Environment Parameter
Endlosure Protection Rating IP65 IP65 IP65 IP65 IP65
Charge Temperature Range(°C) 0°C~50°C 0°C~50°C 0°C~50°C 0°C~50°C 0°C~50°C
Discharge Temperature Range (°C) -20°C~55°C -20°C~55°C -20°C~55°C -20°C~55°C -20°C~55°C
Installation Method Floor-mount Floor-mount Floor-mount Floor-mount Floor-mount
Service Life
Service LifeCycle Life >6000(@25℃,80%DOD) >6000(@25℃,80%DOD) >6000(@25℃,80%DOD) >6000(@25℃,80%DOD) >6000(@25℃,80%DOD)
Design Life (Year) 10 10 10 10 10
Certification
Safety & Certification CE,IEC62619,UL1973 CE,IEC62619,UL1973 CE,IEC62619,UL1973 CE,IEC62619,UL1973 CE,IEC62619,UL1973
Transportation UN38.3 UN38.3 UN38.3 UN38.3 UN38.3



Gospower is aleading Energy &Electric company founded in 2006. We are world-renowned manufacturer and supplier of energy storage battery,hybrid and off-grid inverters and power supply products.

1. One-stop service

2. 18+ Years Experience

3. Strict QC inspection report for each order

4. Automatic production equipments, complete the order with quality and quantity guarantee, 99.9%+ good product yield rate

5. Engineers have extensive experience in installation solutions and can design installation solutions based on specific project details

6. Perfect after-sales service system

7. More than 10 overseas offices

8. Dispatch technicians for on-site maintenance and technical training, and provide marketing strategies and marketing materials

Gospower





Headquartered in Shenzhen,Gospower has a factory in Dongguan Songshan Lake Industrial Park of 80,000 sqm,more than 1200 employees.

Aging Test

ATE Test

Auto Plugin

Conduction Pretest

Conduction Pretest

EMS Test

PCB Test

Vibration Test

Final Inspection
