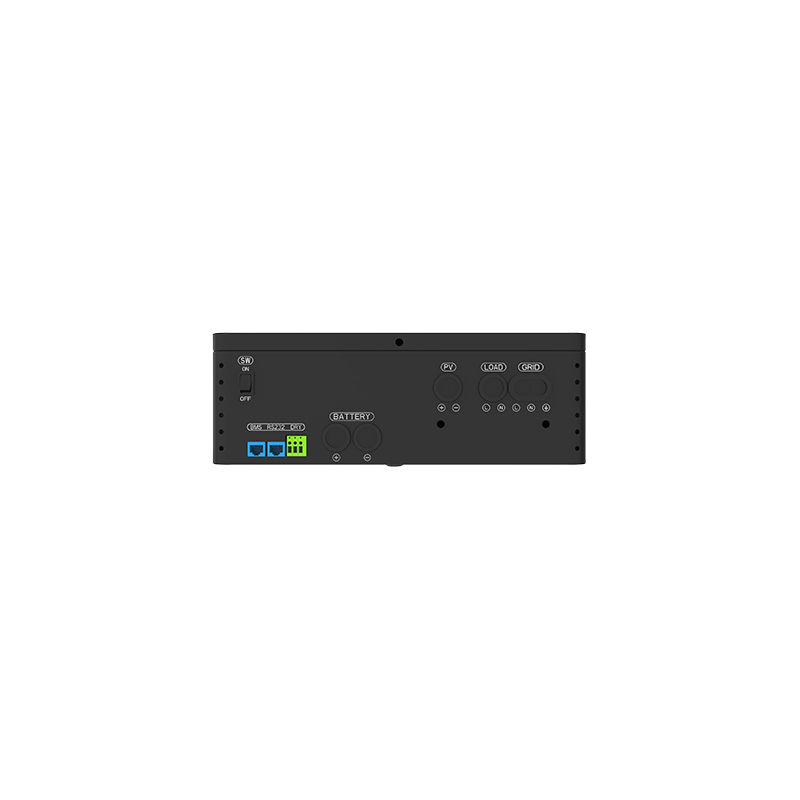

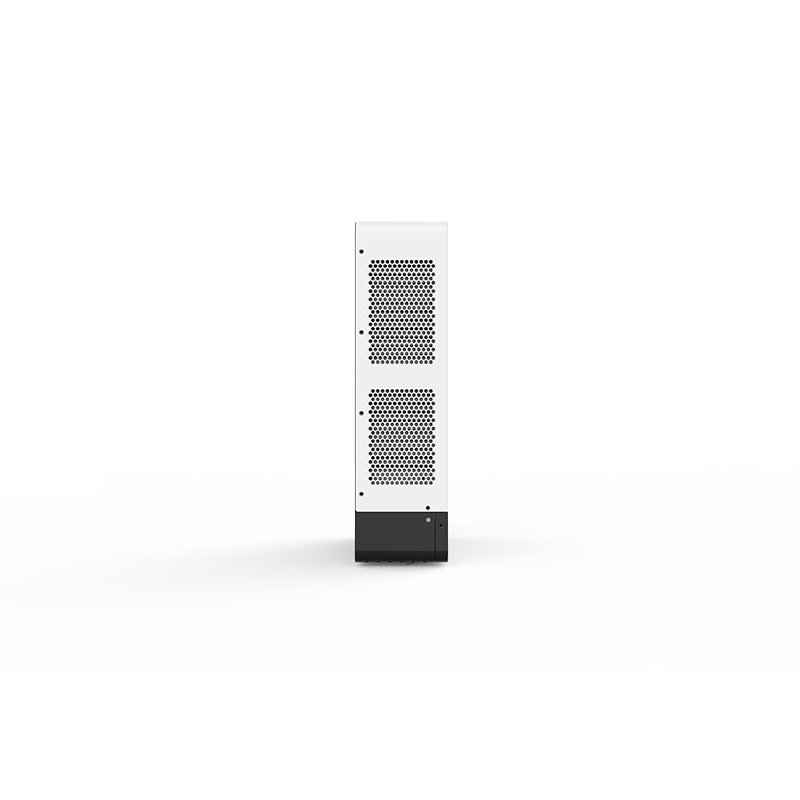

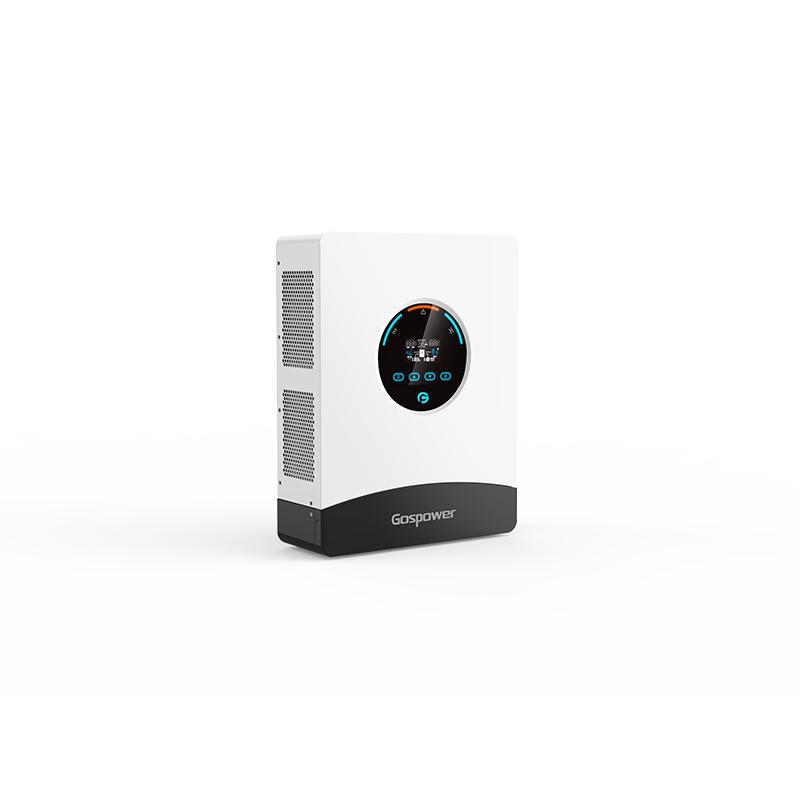

3.5kW 18A Single Split Phase Residential Off-Grid Inverter Built-in MPPT

Gospower GPEO-3K5L1-US is a perfect match for residential installations thanks to its compact size and easy installation. Manufactured for durability and longevity under modern industrial standards, Gospower GPEO-3K5L1-US is IP54 rated so it can be mounted either inside or outside your home.

  • Item No :

    GPEO-3K5L1-US

3.5kW 18A Single Split Phase Residential Off-Grid Inverter Built-in MPPT



IP54 Design

Pure Sine Wave

Built-in MPPT

BMS Communication

Max. 12 Units Parallel

3 Years Warranty



The Gospower GPEO-3K5L1-US Residential Single Split Phase Off-Grid Inverter, a reliable solution tailored for residential installations. With its compact size and straightforward installation process, the Gospower GPEO-3K5L1-US seamlessly integrates into your home setup. Engineered to meet modern industrial standards, this inverter is built for durability and longevity, ensuring consistent performance over time.

Featuring a power output of 3.5kW and an 18A MPPT (Maximum Power Point Tracking), the Gospower GPEO-3K5L1-US efficiently harnesses solar energy to meet your household's energy needs. Its IP54 rating allows for versatile mounting options, whether inside or outside your home, providing flexibility and convenience.

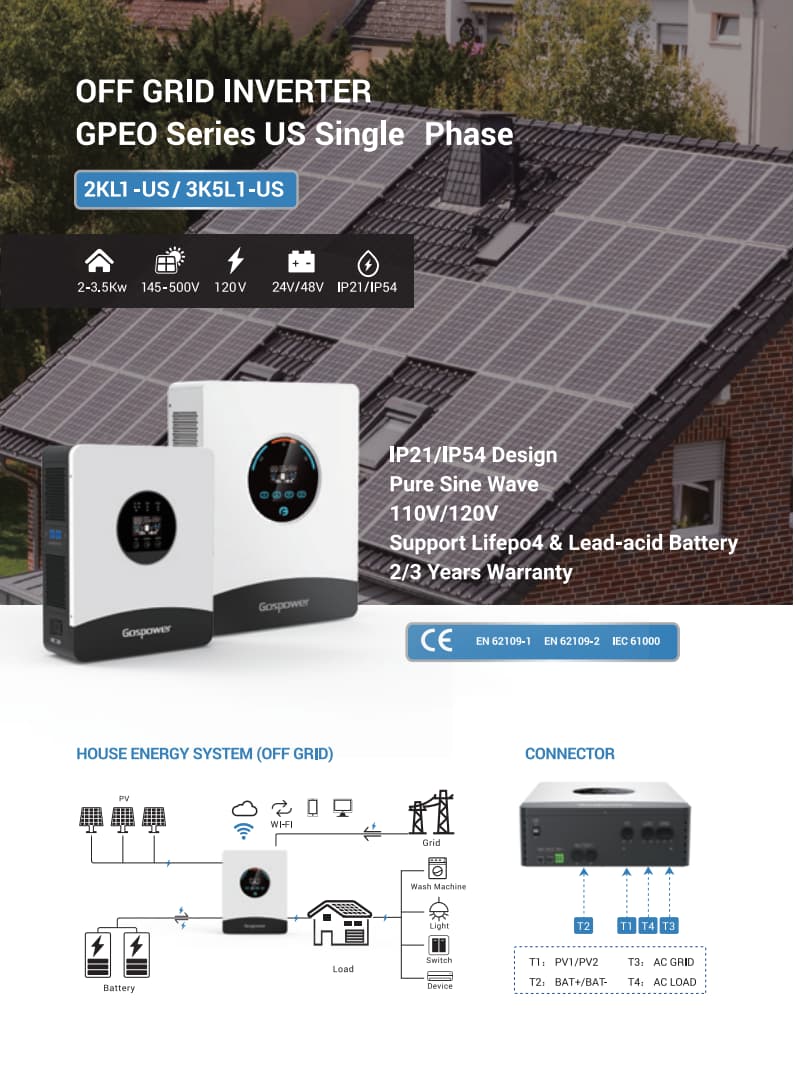

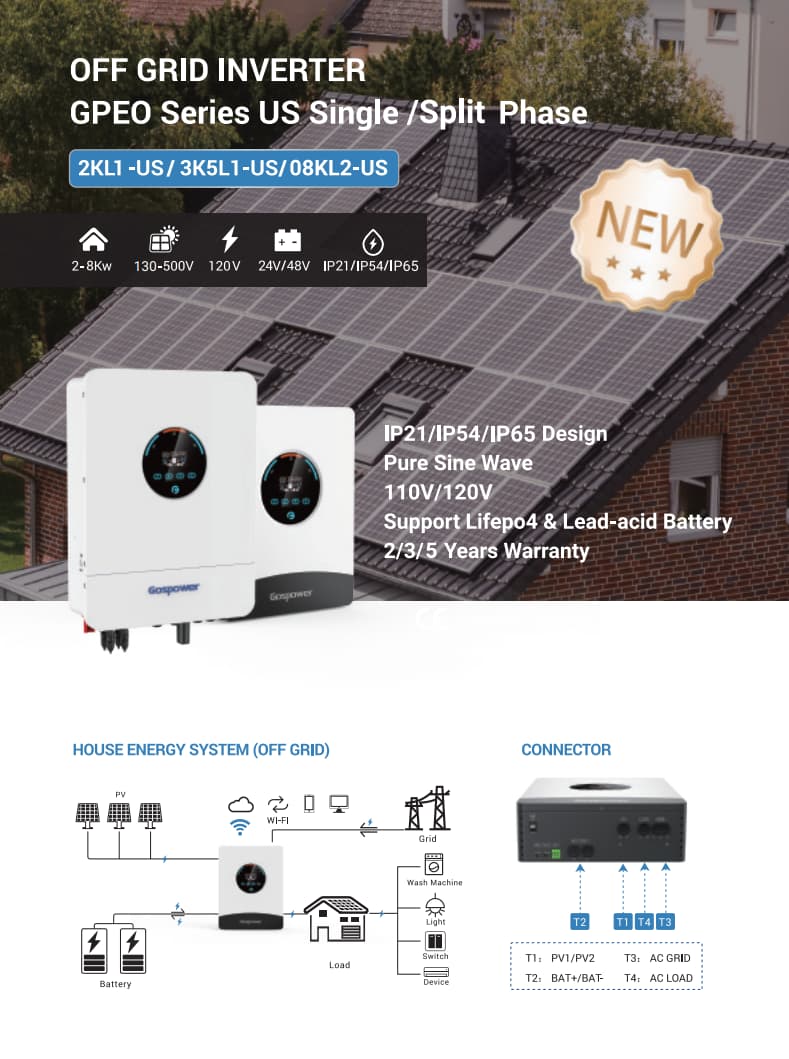

3.5kW Single Phase Off-Grid Inverter



    GPEO-3K5L1-US GPEO-6KL2-US GPEO-12KL2-US
     PV
(DC  Input)
Recommended max. PV input power 4000W 6000W 12000W
Max.input voltage(Voc) 500V 500V 500V
MPPT operating voltage range 85V-450V (@75V start up) 85V-450V (@75V start up) 85V-450V (@75V start up)
Number of MPPT 1 1 2
Max.number of input strings per MPPT 1 1 1
Max.input current per MPPT 18A 27A 27/1 3(MAX:40A)
Max. short-circuit current per MPPT 22A 35A 37A/1 7.5A
    Grid
(AC  Input)
Max input power 6000W 12000W 24000W
Max input current 50A 50A 100A
Rated grid voltage 110/120/127Vac (L,N) 220/2307240Vac(L,N,PE 120/240,208Vac(L1,L2,N)
ated grid frequency 50/60Hz 50/60Hz 50/60Hz
Acceptable range

90-140Vac (For UPS);

80-140Vac (For Home Appliances)

90-140Vac (For UPS);

80-140Vac (For Home Appliances)

90-1 40Vac (For UPS) ;

80-1 40Vac (For Home Appliances)

   Rattey
parameters
(Bidirection)
Battery type LiFePO 4 /Lead-acid LiFePO 4 /Lead-acid LiFePO 4 /Lead-acid
Battery voltage rang 40-60Vdc 40-60Vdc 40-60Vdc
Rate Battery Voltage 48Vdc 48Vdc 48Vdc
Max.charge/discharge current 60A/65A 120A/130A 210A/230A
BMS communication mode RS485 RS485 RS485
   Back-up
   Output
(AC  Output)
Rated output power 3500W/3500VA 6000W/6000VA 12000W/12000VA
Rated output current 31.8A 27.3A 54.5A
Rated output voltage / Frequency 110/120/127V (L,N) 50/60Hz 120/240V (L1,L2,N) 50/60Hz 120/240V (L1,L2,N) 50/60Hz
Parallel Capacity Max. 12 Units Max. 12 Units Max. 12 Units
Surge power 7000VA 5s 1200VA 5s  24000VA 5s
THDv (@linear load) <3% <3% <3%
Switching time 10ms typical (For UPS)20ms typical (For Home Appliances)
Efficiency Peak efficiency 98.00% 98.00% 98.00%
Max.MPPT efficiency 99.90% 99.90% 99.90%
Protection lnner protection √Output short-circuit protection  √Output overvoltage protection
Surge protection PV: Type III, AC: Type III
IP rating IP54
   Genera
Parameters
Operating temperature range -10℃~55℃
Relative humidity range 5%~95% 5%~95%  5%~95%
Max.operating altitude >2000m derating >2000m derating  >2000m derating
Standby sef-consumption <10W <10W  <20W
Installation type Wall-mounted Wall-mounted  Wall-mounted
Cooling mode Fan cooling Fan cooling  Fan cooling
Communication RS232/RS485/Dry contact/WI-FI RS232/RS485/Dry contact/WI-FI  RS232/RS485/Dry contact/WI-FI
Display LCD LCD  LCD
Mechanical
specifications
Inverter dimensions (L*W*H) (mm) 444.7*346.6*120 444.7*346.6*120  630*535*125
Net weight (kg) 12 15 28
Shipping dimensions (L *W*H) (mm) 560*465*240 560*465*240  745*650*240
Gross weight (kg 14 17 31
Warranty 3 Years
