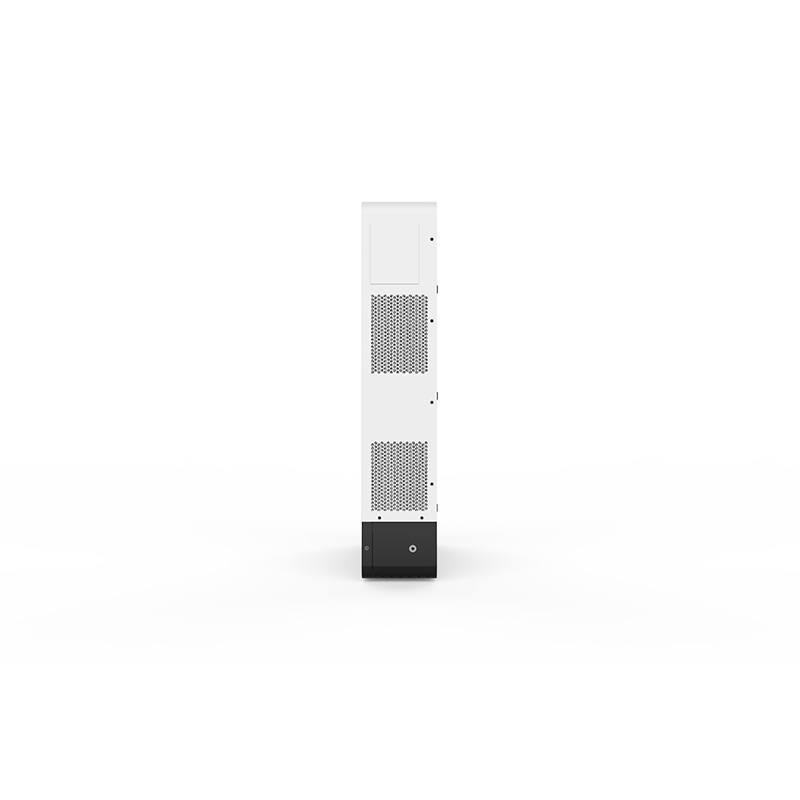

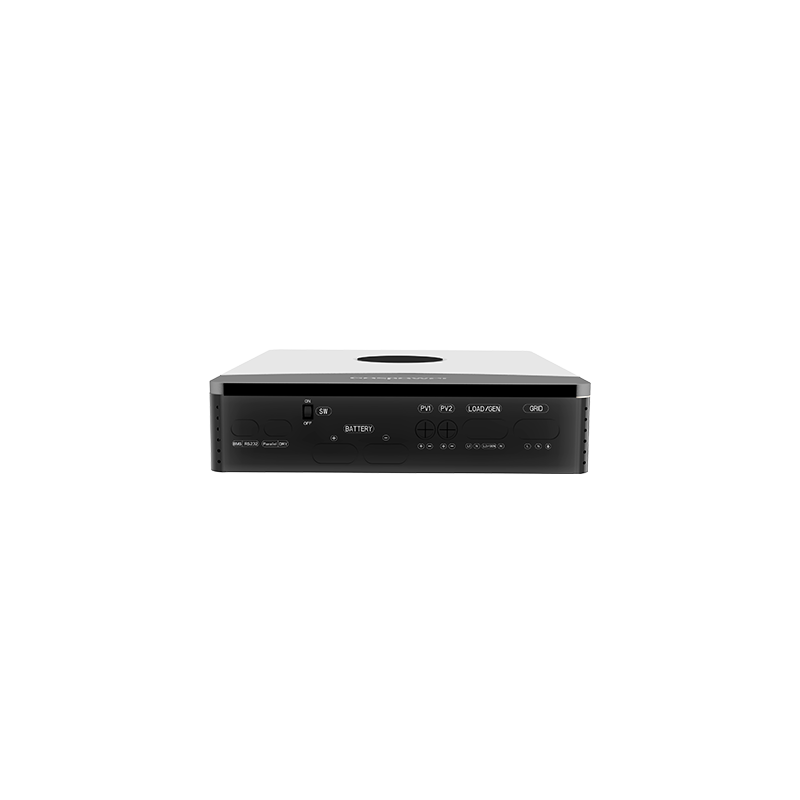

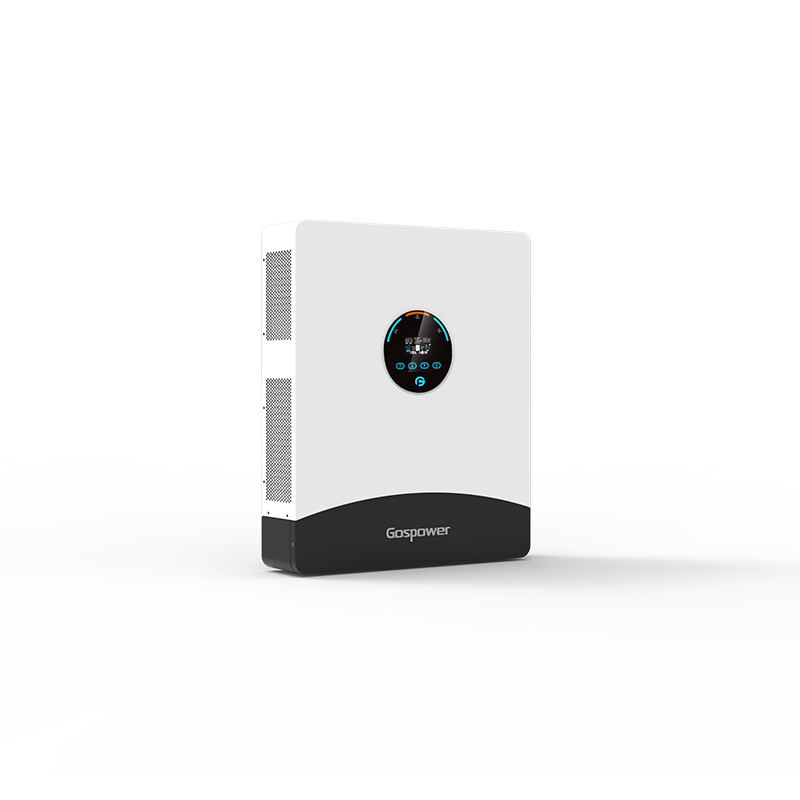

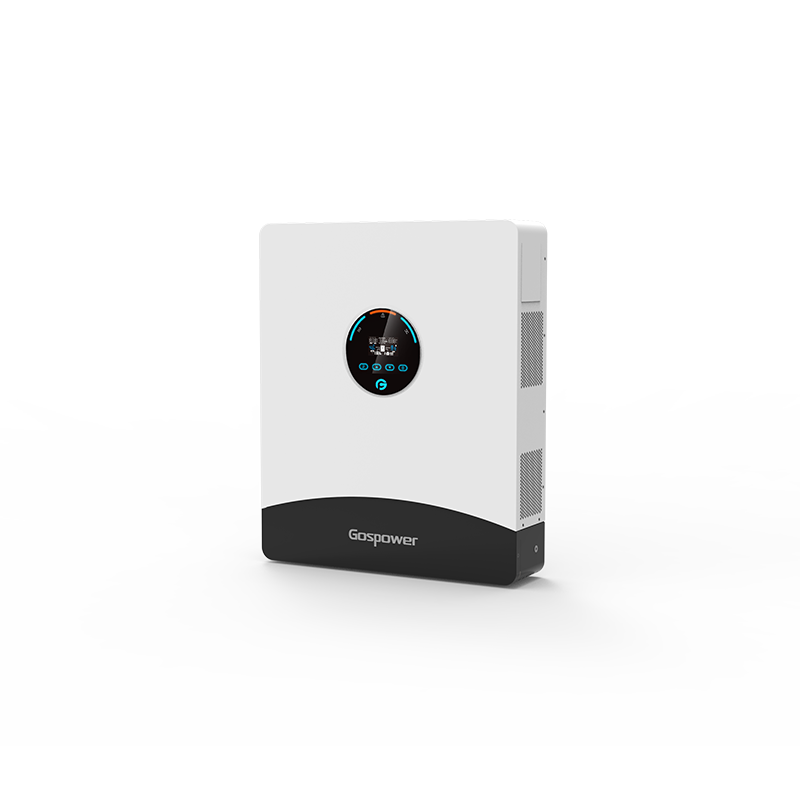

Gospower GPEO-12KL1 pure sine wave solar inverter is a perfect design for home- installation with its compact size and quick setting. With a wide MPPT operating range of 85-450V, Gospower inverter is a good option for your household system.
Item No :
GPEO-12KL112kW Single Phase Off-grid Solar Inverter Built-in MPPT 27/13(MAX:40A) for Home
IP54 Design
Built-in MPPT
BMS Communication
Max. 12 Units Parallel
3 Years Warranty
Battery type: Lead acid, LiFePo4
Gospower single phase Off-grid inverter with built-in MPPT is for backup power supply and self-consumption applications for homes and small businesses, providing power for all kinds of needs. It support setting charge model, and its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC charger priority, and acceptable input voltage based on different applications.
| GPEO-4KL1 | GPEO-6KL1 | GPE0-12KL1 | ||
| PV (DC Input) |
Recommended max.PV input power | 4000W | 6000W | 12000W |
| Max.input voltage(Voc) | 500V | 500V | 500V | |
| MPPT operating voltage range | 85V-450V(@85V start up) | 85V-450V (@75V start up) | 85V-450V (@75V start up) | |
| Number of MPPT | 1 | 1 | 2 | |
| Max.number of input strings per MPPT | 1 | 1 | 1 | |
| Max.input current per MPPT | 15A | 27A | 27/13(MAX:40A) | |
| Max.short-circuit current per MPPT | 18A | 35A | 35A/17.5A | |
| Grid (AC Input) |
Max input power | 5000W | 11500W | 16000W |
| Max input current | 28A | 50A | 90A | |
| Rated grid voltage | 220/230/240Vac | 220/230/240Vac | 220/230/240Vac | |
| Rated grid frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Acceptable range | 170-280Vac(For UPS); 90-280Vac(For Home Appliances) |
170-280Vac(For UPS); 90-280Vac(For Home Appliances) |
170-280Vac(For UPS); 90-280Vac(For Home Appliances) |
|
| Battery Parameters (Bidirection) |
Battery type | LiFePO4/Lead-acid | LiFePO4/Lead-acid | LiFePO4/Lead-acid |
| Battery voltage range | 20~30Vdc | 40~60Vdc | 40~60Vdc | |
| Rate Battery Voltage | 24Vdc | 48Vdc | 48Vdc | |
| Max.charge/discharge current | 120A/160A | 120A/130A | 210A/230A | |
| BMS communication mode | RS485 | RS485 | RS485 | |
| Back-up Output (AC Output) |
Rated output power | 4000W/4000VA | 6000W/6000VA | 12000W/12000VA(Twin output) |
| Rated output current | 18.2A | 27.3A | 54.5A | |
| Rated output voltage / Frequency | 220/230/240Vac 50/60Hz | 220/230/240Vac 50/60Hz | 220/230/240Vac 50/60Hz | |
| Parallel Capacity | _ | Max. 12 Units | Max. 12 Units | |
| Surge power | 8000VA 5s | 12000VA 5s | 24000VA 5s | |
| THDv(@linear load) | ＜3% | ＜3% | ＜3% | |
| Switching time | 10ms typical (For UPS) 20ms typical(For Home Appliances) | |||
| Efficiency | Peak efficiency | 95.00% | 98.00% | 98.00% |
| Max.MPPT efficiency | 99.90% | 99.90% | 99.90% | |
| Protection | Inner protection | √ Output short-circuit protection √ Output overvoltage protection | ||
| Surge protection | PV:Type III,AC:Type III | |||
| IP rating | IP54 | |||
| General Parameters |
Operating temperature range | -10℃ ~ 55℃ | ||
| Relative humidity range | 5%~95% | 5%~95% | 5%~95% | |
| Max.operating altitude | ＞2000m derating | ＞2000m derating | ＞2000m derating | |
| Standby self-consumption | ＜10W | ＜10W | ＜20W | |
| Installation type | Wall-mounted | Wall-mounted | Wall-mounted | |
| Cooling mode | Fan cooling | Fan cooling | Fan cooling | |
| Communication | RS232/RS485/Dry contact/WI-FI | RS232/RS485/Dry contact/WI-FI | RS232/RS485/Dry contact/WI-FI | |
| Display | LCD | LCD | LCD | |
| Mechanical Specification |
Inverter dimensions (L*W*H)(mm) | 444.7*346.6*120 | 444.7*346.6*120 | 630*535*125 |
| Net weight (kg) | 9.2 | 12.4 | 27 | |
| Shipping dimensions (L*W*H)(mm) | 560*465*240 | 560*465*240 | 745*650*240 | |
| Gross weight (kg) | 11.4 | 14.6 | 30 | |
| Warranty Period | 3 Years | |||
|
