Residential 3.6kW 25A Single Phase Off-Grid Inverter Built-in MPPT

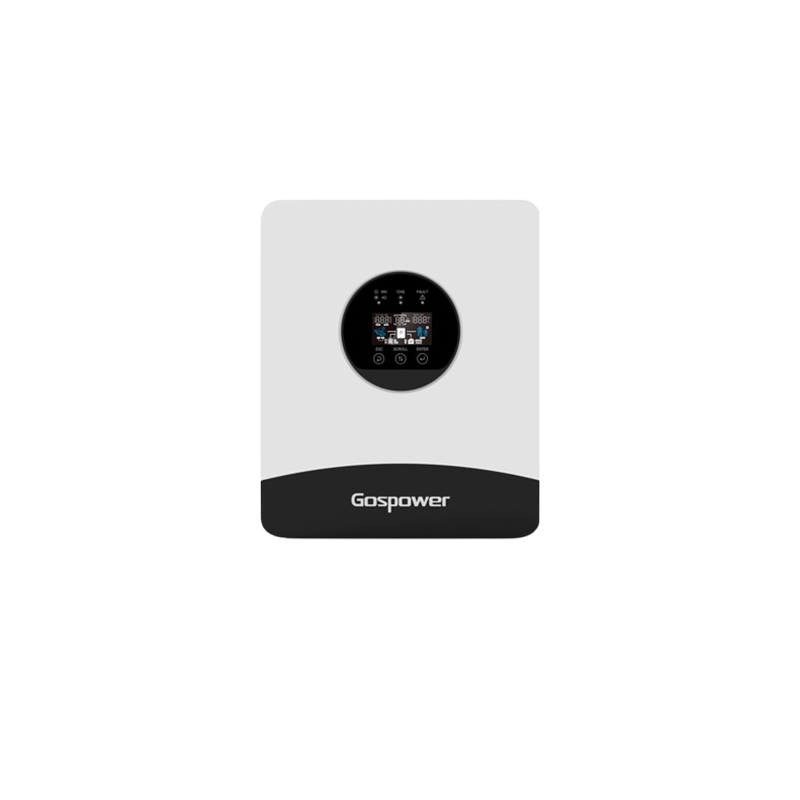

Gospower GPEO-3K6L1-M is residential solar inverter specifically designed to bring comfort and quiet operation as well as high efficiency to households.

  • Item No :

    GPEO-3K6L1-M

Residential 3.6kW 25A Single Phase Off-Grid Inverter Built-in MPPT



IP21 Design

Support LFP & SLA Battery

2 Years Warranty

Built-in 25A solar charge controller



An off-grid inverter is a crucial component of off-grid solar energy systems. It functions by converting the direct current (DC) electricity produced by solar panels or stored in batteries into alternating current (AC) electricity that can be used to power household appliances and electronics. Unlike grid-tied inverters, which are connected to the utility grid, off-grid inverters operate independently, making them essential for remote locations or areas with unreliable grid access.

Gospower GPEO-3K6L1-M single phase off-grid inverter constantly holds the voltage and frequency of the AC grid within the permissible limits, establishes a stable stand-alone power grid.

Gospower GPEO-3K6L1-M single phase off-grid solar inverter is suitable for non-power area, nomadic area, communication base station, power instability area, island, border post, scenic area management office, newspaper booth, etc..

Equipped with LCD display, supports RS232/RS485 communication, with exquisite design.





1.8KW Solar Off-Grid Inverter








GPEO-1K8L1-M
GPEO-3K6L1-M
PV (DC  Input) Recommended max. PV input power 650W 1500W
Max.input voltage(Voc) 130V 145V
MPPT operating voltage range 5V-120V(@+6V start up) 30V-120V (@30V start up)
Number of MPPT 1 1
Max.number of input strings per MPPT 1 1
Max.input current per MPPT 20A 25A
Max short-circuit current per MPPT 25A 27A
Grid (AC  Input) Max input power 2300W 4000W
Max input current 10A 17.4A
Rated grid voltage 220/230/240Vac(L,N,PE) 220/230/240Vac(L,N,PE)
Rated grid frequency 50/60Hz 50/60Hz
Acceptable range 170-280Vac (For UPS);90-280Vac (For Home Appliances) 170-280Vac (For UPS);90-280Vac (For Home Appliances)
Battery parameters (Bidirection) Battery type Lead-acid LiFePO4/Lead-acid
Battery voltage range 10V~14.5V 20-30V
Rate Battery Voltage 12Vdc 24Vdc
Max.charge/discharge current 100A/150A 120A/180A
BMS communication mode RS232 RS232/RS485
Back-Up Output (AC Output) Rated output power 1500W/1800VA 3000W/3600VA
Rated output current 7.8A 15.6A
Rated output voltage 220/230/240Vac(L,N,PE) 220/230/240Vac(L,N,PE)
Frequency 50/60Hz 50/60Hz
Surge power 3600VA 2s 7200VA 2s
THDv (@linear load) <3% <3%
Switching time 10ms typical (For UPS) 20ms typical (For Home Appliances)
Efficiency Peak efficiency 95% 95%
Max.MPPT efficiency 93% 92%
Protection lnner protection √ Output short-circuit protection  √ Output overvoltage protection
Surge protection PV:Type IlI,AC:Type III
IP rating IP21
General Parameters Operating temperature range -10℃~50℃
Relative humidity rang 5%~95% 10%~95%
Max.operating altitude >2000m derating >2000m derating
Standby self-consumption <10W <10W
Installation type Wall-mounted Wall-mounted
Cooling mode Fan cooling Fan cooling
Communication RS232 RS232/RS485
Display LCD LCD
Mechanical Specifications Inverter dimensions (L*W*H)(mm) 350*290*105 350*290*105
Net weight (kg) 5.55 6
Carton dimensions (L*W*H)(mm) 495*385*165 495*385*165
Gross weight (kg) 6.5 7
Warranty Period 2 Years
