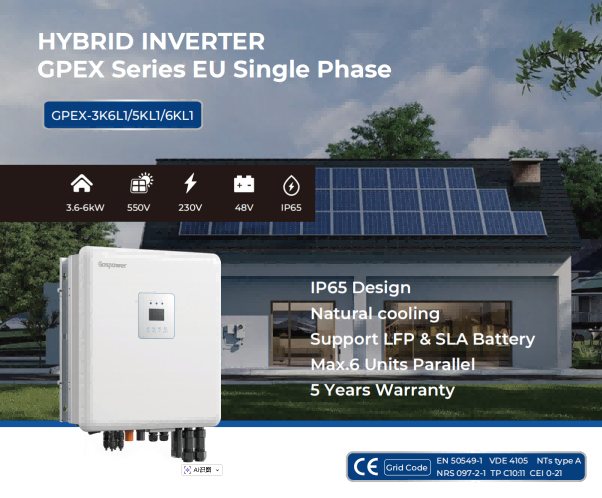

5kW Built-in MPPT 13/13A Single Phase Residential Solar Hybrid Inverter

Gospower GPEX-5KL1 hybrid inverter is a high-performance single phase energy controller, including max.6 units paralleling connected. It can keep more home appliances active with higher self-sufficiency in green energy and lower electricity bills.

  • Item No :


5kW Built-in MPPT 13/13A Single Phase Residential Solar Hybrid Inverter


IP65 Design,Natural Cooling

Support LFP &SLA Battery

Max. 6 Units Parallel

5/10/15 Years Waranty

With High Pv Input Voltage Range

Efficiently Work With or Without Battery


Gospower GPEX-5KL1 hybrid solar inverter is one of Gospower's popular products. This Gospower 5kW home solar hybrid inverter adopts MPPT controller and supports operation without batteries, with MPPT solar charger controller built inside, Max PV input power reaches 5000w.

Gospower Residential Solar Hybrid Inverter, your deserves it!

Gospower Hybrid Inverter is an 18 years ISO 9001, ISO14001, ISO45001 manufacturer and Solar Inverter supplier in China. We are goverment authorized factory and supplier for Solar Inverter and hybrid solar home system.


(DC Input)
Recommended max. PV input power 4800W 8000W 8000W
Max.input voltage(Voc) 600V 600V 600V
MPPT operating voltage range 120-550V 120-550V 120-550V
Number of MPPT 1 2 2
Max.number of input string perr MPPT 1 1 1
Max.input current per MPPT 13A 13/13A 13/13A
Max.short-circuit current per MPPT 20A 20A 20A
Rated input power 3600W 5000W 6000W
Rated input current 15.7A 21.7A 26.1A
Rated grid voltage 230V(L,N,PE)50/60Hz 230V(L,N,PE)50/60Hz 230V(L,N,PE)50/60Hz
THDi <3% <3% <3%
Power factor  -0.8~+0.8  -0.8~+0.8  -0.8~+0.8
Batten parameters
Battery type SLA &LiFePO4 SLA &LiFePO4 SLA &LiFePO4
Battery voltage range 40-60V 40-60V 40-60V
Rated Battery voltage 48VDC 48VDC 48VDC
Max.charge/discharge current 50A 100A 100A
BMS communication mode 485:CAN 485:CAN 485:CAN
(AC Output)
Rated output power 3600W 5000W 6000W
Rated output current 15.7A 21.7A 26.1A
Rated output voltage 230V(L,N,PE)50/60Hz 230V(L,N,PE)50/60H 230V(L,N,PE)50/60Hz
Surge power 3960VA 5500VA 6600VA
THDv(@linear load) <3% <3% <3%
switching time <10ms <10m <10m
Efficiency Max. MPPT efficiency 99.90% 99.90% 99.90%
Max. efficiency 97.20% 98.00% 98.00%
European efficiency 96.40% 97.10% 97.10%
Battery charging/discharging efficiency 94.00% 94.00% 94.00%
Protection Protection √DC switch
√PV reverse connection protection
√Battery reverse connection protection
√Output short-circuit protection
√Output overvoltage protection
√Insulation impedance detection
√Residual current detection
√Anti-island protection
Surge Protection PV:Type Ⅲ, AC:Type Ⅲ
Ip rating IP65 IP65 IP65
Operating temperature range  -25~60℃  -25~60℃  -25~60℃
Relative humidity range 0~95% 0~95% 0~95%
Installation type Wall mounted Wall nnounted Wall mounte
Cooling mode Natural cooling Natural cooling Natural cooling
Communication Wi-Fi; R485; CAN; GPRS Wi-Fi; R485; CAN; GPRS Wi-Fi; R485; CAN; GPRS
Mechanical specifications Inverter dimensions (L*W*H)(mm) 535*485*198.5 535*485*198.5 535*485*198.5
Net weight (kg) 27.5 29 29
Carton dimensions (L*W*H)(mm) 715*565*331 715*565*331 715*565*331
Gross weight (kg) 31.5 34.5 34.5
Warranty 5 Years Standard (10/15 Years Optional)
