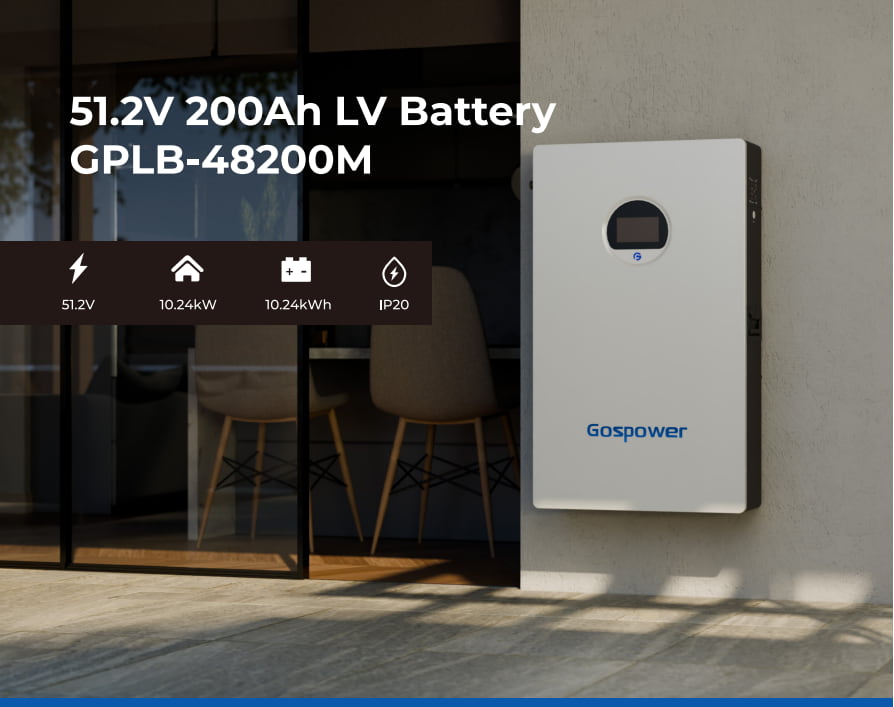

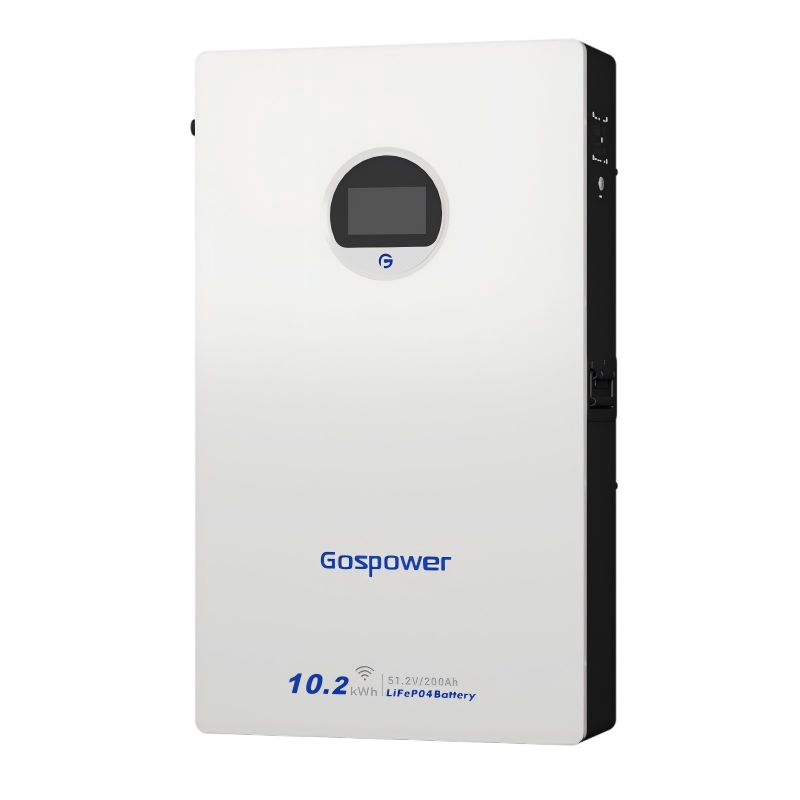

10kWh Low Voltage Wall-Mounted Energy Storage Battery Pack

Gospower GPLB-48200M wall mounted lithium battery adopts plug-in design with the feature of fast installation. Up to 160kWh power storage with max.16 units paralleling connected, which can be used in your home or small commerical scenes.

  • Item No :

  • Weight :


10kWh Low Voltage Wall-Mounted Energy Storage Battery Pack



Smart Connection

High Density

10 Years Warranty

Maximum 16 units Paralleling

Up to 160kWh Energy Storage

Builtin BMS Communication

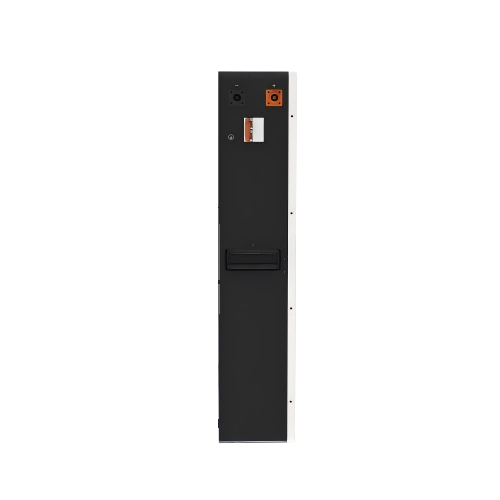

Plug in terminal design, fast installation available

Easy maintenance

High power charging/discharging @ 6000 cycles


The wall-mounted lithium battery uses lithium iron phosphate(lifepo4) as the positive electrode material, with stable chemical properties and high safety performance. With a cycle life of over 6,000 times, it can be used as a long-term and stable home backup energy source.Wall-mounted batteries are small and take up little space, but they are simple to install and require almost no maintenance.The battery Up to 160kWh power storage with max.16 units paralleling connected and achieve the needed power.

Gospower GPLB-48200M wall mounted lithium battery Support customizing battery voltage, current, capacity, appearance, etc.Provide battery OEM, ODM services.10-year after-sales guarantee, professional technical support.





Nominal Energy (kWh) 10.24
Nominal Voltage (V) 51.2
Nominal Capacity(Ah) 200
IP Rating IP 20
Output Power (kW) 5.12
Voltage Range (V) 43.2~58.4
Charge Voltage (V) 56.8~58.4
Charge Current (A) 100
Discharge Current (A) 100
Charge Mode CC-CV
Communication CAN / RS485 / RS232
Charge Temperature 0-55 ℃
Discharge Temperature -20 - 55 ℃
Designed Life 10+Years
Cycle Life >6000(@25℃,80%DOD)
Weight  (kg) 45


Gospower is a leading Energy &Electric company founded in 2006. We are world-renowned manufacturer and supplier of energy storage battery,hybrid and off-grid inverters and power supply products.

1. One-stop service

2. 18+ Years Experience

3. Strict QC inspection report for each order

4. Automatic production equipments, complete the order with quality and quantity guarantee, 99.9%+ good product yield rate

5. Engineers have extensive experience in installation solutions and can design installation solutions based on specific project details

6. Perfect after-sales service system

7. More than 10 overseas offices

8. Dispatch technicians for on-site maintenance and technical training, and provide marketing strategies and marketing materials




Headquartered in Shenzhen,Gospower has a factory in Dongguan Songshan Lake Industrial Park of 80,000 sqm,more than 1200 employees.

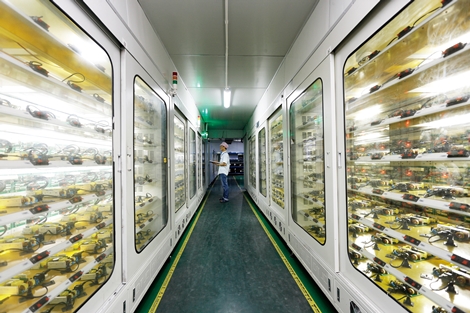

Aging Test

ATE Test

Auto Plugin

Conduction Pretest

Conduction Pretest

EMS Test

PCB Test

Vibration Test

Final Inspection
